The practical adoption of noise and vibration (N&V) sensors can be traced back to the early 1950s, largely driven by emerging occupational health regulations and the need to monitor industrial noise exposure. These instruments were primarily analogue in design.
The 1960s marked the next leap in technology, shaped by:
1. The formulation of early ISO and ANSI standards
2. The introduction of octave and third-octave filters for frequency analysis
3. The growing use of vibration measurements in mechanical and civil engineering
By the 1970s, seismic and structural vibration studies took center stage, leading to the development of seismic sensors, ground vibration monitoring systems, and their extensive use in mining and earthquake engineering. While all these were categorised as LOW frequency assessment, the next big thing happened with introduction of piezoelectric accelerometers for dynamic measurements that could cover a large bandwidth of frequencies with better base sensitivity.

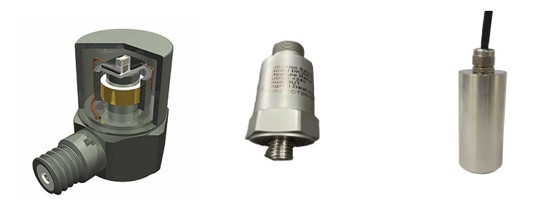

Early versions of Piezoelectric vibration sensors
The following decade saw further strides in miniaturization, operating reliability, and sensitivity. Piezoelectric sensors were soon integrated with built-in signal conditioners, marking the rise of the IEPE/ICP sensor era in the late 1980s. Around the same time, the introduction of digital Fourier analyzers completely reshaped the test and measurement landscape, enabling faster and more accurate frequency analysis. This period also witnessed the first industrial trials of high-sensitivity MEMS sensors, opening new possibilities for compact and versatile vibration measurement technologies.

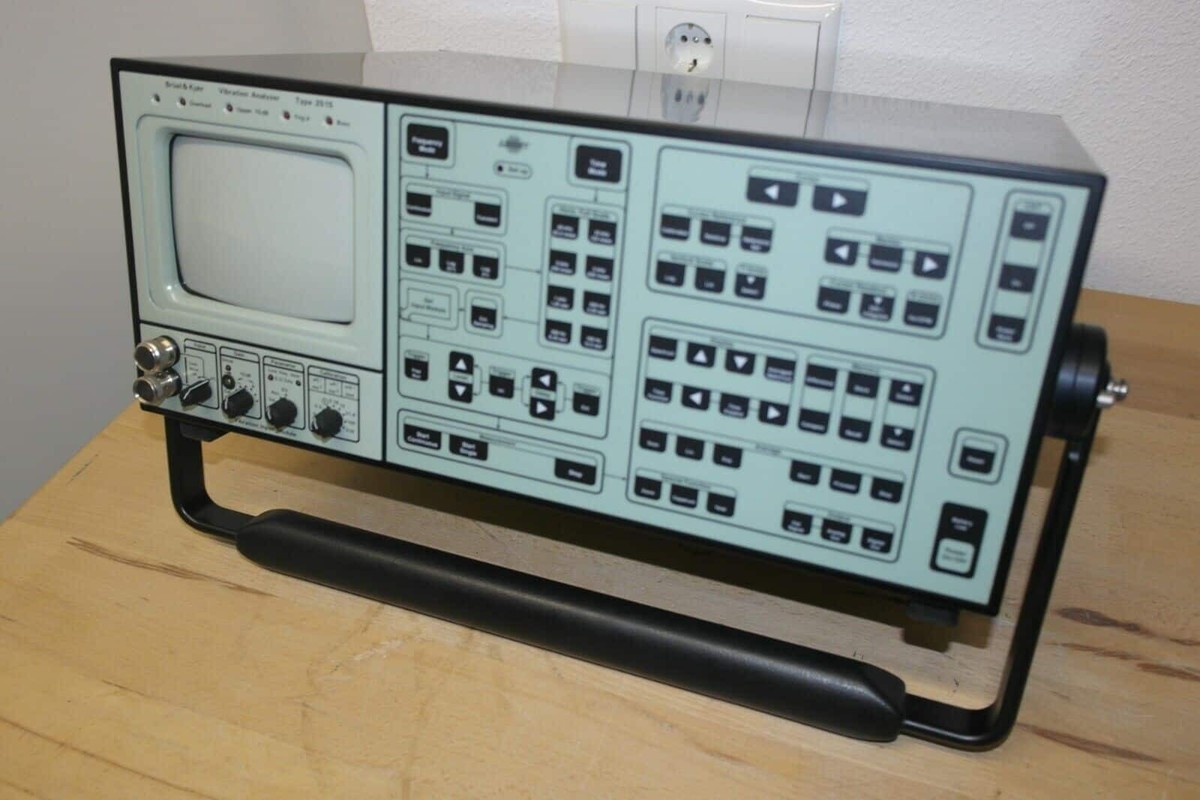

B&K 1 channel vibration analyser weighing 22kg
The 1990s marked a giant leap forward with a paradigm shift from analogue to digital data handling and processing. This transition opened the door to PC-based, software-driven data acquisition systems, delivering unprecedented flexibility and control. With the advent of high-quality, high channel-count hardware, the decade witnessed a quantum jump in overall system performance, setting new benchmarks for accuracy and scalability in noise and vibration testing.
Thinking back to my early years working with sensors and systems of the late 1980s, I had the opportunity to see, experience, and use some of the most advanced instrumentation of that time. From the iconic and highly reliable B&K charge-output sensors (weighing just 20–40 grams), to the HP–Agilent 4-channel rack-mounted data acquisition system (Model 5451C) that demanded a dedicated air-conditioned room, the technology felt cutting-edge. Even the so-called “portable” B&K 2515 analyzer weighed in at a hefty 22 kilograms—reminding us how far instrumentation has evolved since those days.

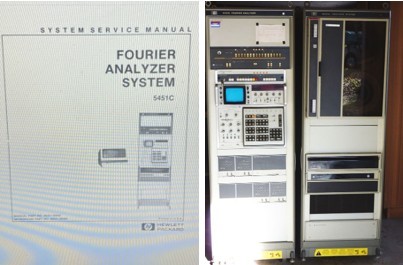

HP Agilant 5451C 4 channel Fourier analyser, a big rack mounted device
all it an opportunity or a date with history, but I once had the chance to work with a sound intensity analyzer weighing over 50 kilograms. This system came complete with a CRT display, thermal printer, cassette recorder, and a bulky processor unit—together resembling a mini Manhattan skyline when stacked. A true reminder of how far we’ve come in making instrumentation more compact, efficient, and user-friendly.
B&K's (trans)portable Sound Intensity system, I am part of this picture holding the SI probe !
Gone are the days of bulky systems. Today, a 12-channel high-speed data acquisition unit with real-time recording capability fits into a palm-sized device weighing under 500 grams. With over 4 hours of battery life—and even support from a simple Li-ion mobile phone power bank—this represents technology compression at its finest.
Now, with the rise of IoT-enabled solutions, the game is changing once again. The combination of versatile hardware, powerful software tools, and ever-faster internet speeds is taking noise and vibration monitoring and analysis to entirely new heights.
Founded in 2005, NV Dynamics began its journey with 2–4 channel portable data acquisition systems. Over time, we quickly advanced to multi-channel, high-speed platforms powered by industry-proven software packages. This capability is further strengthened by a wide range of miniature, multi-axial sensors, enabling us to deliver on the most demanding consulting requirements in the noise and vibration domain.

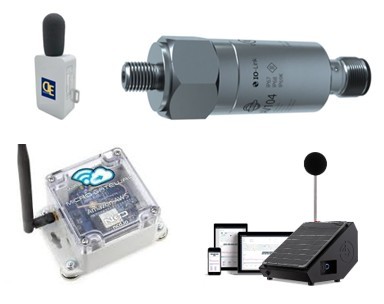

Some of IoT based Noise and Vibration sensors
As a natural progression, we are now investing heavily in IoT-driven initiatives, working in close collaboration with hardware and software developers. The wealth of industry experience and instrumentation expertise we’ve built over the years is now being channeled into creating the next generation of IoT solutions—systems that are smarter, faster, and further empowered by AI innovations.
The journey of evolution in the noise and vibration domain continues, and we are excited to be shaping its future.
